STEELMATE SL500

The choice of reliability, powerful and easy operation

Quick Specs
Input Voltage 3PH ~ 400V ±15%
Rated Output(40℃) 60% 500A/39V
Cooling system
Air-cooled
Welding process
Solid wires (GMAW)
Flux-cored (FCAW)
Metal-cored (MCAW)
Air carbon arc cutting & gouging (CAC-A)
Stick (SMAW)

● Standard options             ○ Optionally available

php

The advantage of the P-L-C technology

The Power Line Communication (PLC) is one kind of the Carrier Communication technologies that taken by the Topwell's special designed welding cable (Coaxial cable with built-in gas hose), can get a great advantage for the ultra-long welding applications (especially the ship building or steel constructions).

The key techno points of the Topwell’s PLC system:

  • Two-Way Carrier Communication makes precise welding controls;
  • Dual-Band Carrier Control makes strong anti-interference ability;
  • Benefits:

    Eliminate the extra cables

  • Less jobsite clutter;
  • Greater safety;
  • Significantly weight loss for ultra-long-distance cables;
  • Ultra-long-distance welding with precise & stable arc controls

  • Full functional remote controller at hand;
  • By the Ultra-long loop compensation system, it makes the arc voltage greater precise & stable;
  • Excellent welding performance

  • Optimized for all solid or flux-cored wires;
  • Capable for metal-cored wires;
  • Great result of vertical-up welding for thin plates: small seam and well formed.
  • Capable for future intelligent fabrication

    Optional user management

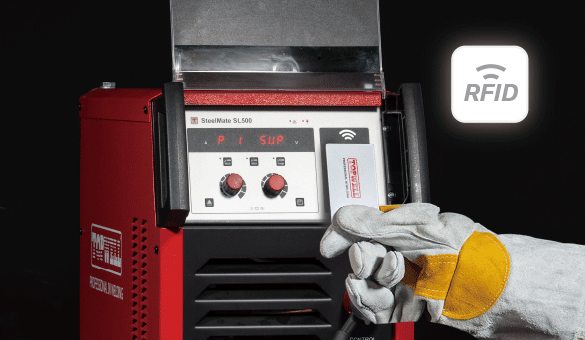

    Steelmate SL series is equipped with active user management and assigned NFC keys to set protection and permissions for parameter adjustment.

    MES system

    It can also choose to connect to the MES system, which is more suitable for modern production data management.

    Optimized wire feeder

  • Optimized for all solid or flux-cored wires;
  • Capable for metal-cored wires;
  • Great result of vertical-up welding for thin plates: small seam and well formed.
  • Innovative intermediate junction box

  • Great help of the maintenance in case of the coaxial cable damage;
  • The intermediate cable could be simply extended up to 100 meters by the junction box as required.
  • Long distancewelding work

    Ultra-Long cable loop compensation function
    Intelligent compensation makes welding more stable, especially suitable for oversized workpiece welding occasions.
